Aluminum PCB Manufacturing

Aluminum PCB manufacturing

When it comes to metal core PCBs, Aluminum PCB is the most common type as the base material is made up of Aluminum core with standard FR-4. Aluminum PCB is the highly effective choice for the high-power applications which refer to heat dissipation and generally optimum performance, as well as maintaining and controlling the overall temperature of the project. Now Aluminum PCB has been widely used in LED lighting, power equipment and automotive systems.

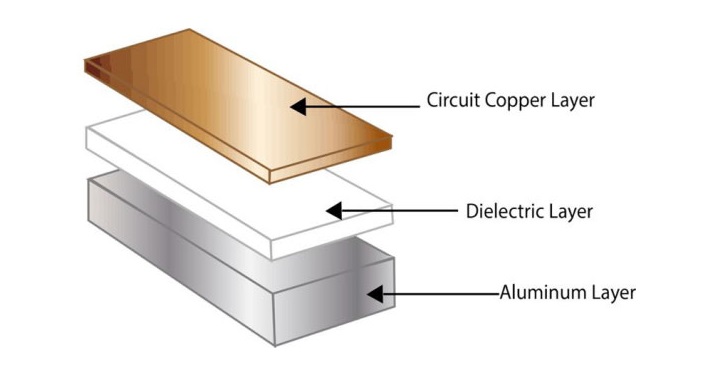

Aluminum PCB has three main layers as follows:





Circuit Layer: Printed circuit foil with thickness of 1 oz to 10 oz.

Dielectric Layer: The Dielectric layer is a thermally conductive layer and is around 50μm to 200μm thick. It had a low thermal resistance and it suitable for its application.

Base Layer: The base layer is most often Aluminum but can also be copper. The most commonly used thickness is 0.040" (1.0mm) although many alternative thicknesses are available.





 JLH TECHNOLOGY CO.,LTD Aluminum PCB Capabilities


No.Item            Process  Capability Parameter
1Base MaterialAluminum base laminate(Ventec,Polytronics,Boyu,GDM,Juqin,CH Alliance etc.)
2Number of Layers1 Layer, 2 Layers
3Max.PCB Size

1 Layer:1500*500mm

Multi-layers: 1200*500mm

4Quality GradeStandard IPC 2 and Advanced IPC 3
5Thermal Conductivity (W/m.K)1W, 2W, 3W, 8W, 12W...Max.298W
6Board Thickness0.4,0.8,1.0,1.5,1.6,2.0,2.4,3.0,3.2,4.8mm
7Min Tracing/Spacing4mil / 4mil
8Plated Through-hole size≥0.2mm
9Non-Plated Through-hole size≥0.8mm
10Copper ThicknessHoz,1oz, 2oz, 3oz, 4oz
11Solder MaskGreen, Red, Yellow, White, Black, Blue, Purple, Matte Green, Matte Black, None
12Surface FinishHASL with lead, HASL lead free, Immersion Gold, OSP, Gold plated, ENEPIG, Immersion Silver, None
13Other OptionsCountersinks, Castellated Holes, Custom Stackup and so on.
14CertificationISO9001, UL, RoHS, REACH



Choose JLH TECHNOLOGY CO.,LTD for your Aluminum PCBs

Thanks to the premium performance, Aluminum PCBs have been widely used in the areas including LED lighting, power conversion, automotive, audio device, power supply, communication electronic equipment, motor drivers, etc. We welcome your inquiry about our Aluminum PCBs: info@ALPCB.com
